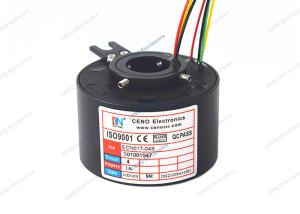

4 Circuits Signal Slip Ring 600rpm 17mm Through Hole For Industry Application

4 circuits signal slip ring with speed 600rpm for industry application

ECN017-04S is an economical through hole signal slip ring with high speed from CENO electronics. There are 4 circuits for 1A signal with rating voltage 0~220 VAC/VDC and electrical noise less than 70mΩ with speed of 50rpm. it’s operating stably at the speed of 0~600rpm within the temperature from -20°C to +60°C and the protection grade is IP51, most of the specification such as IP Grade, working speed, inner or outer diameter can be optional as different application. It’s mainly applied to the automatic machinery, turntable test equipment, electric heating equipment or Filling machine etc.

Specification

Features

• Stable transmission
• Ultra-long distance transmission
• Mix multiple currents or signals and no electrical interface

Applications

• Automatic machine
• Turntable test equipment
• Measuring instrument
• Filling machine

Optional

• Circuit number & Current
• Working speed
• Protection grade
• Position of wire outlet & length

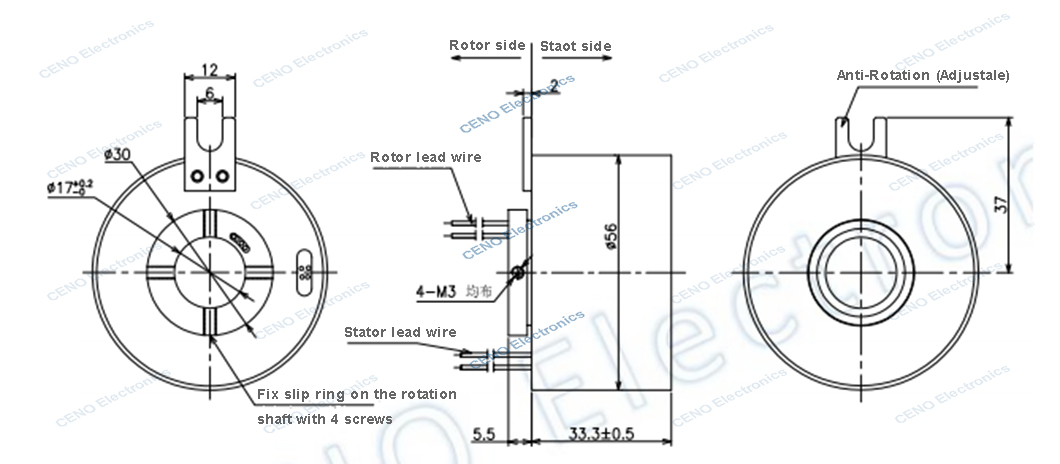

Outline drawing

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

4 Circuits Signal Slip Ring

Precious metal Signal Slip Ring

600rpm Through Hole Slip Ring

4 Circuits Signal Slip Ring 600rpm 17mm Through Hole For Industry Application Images
