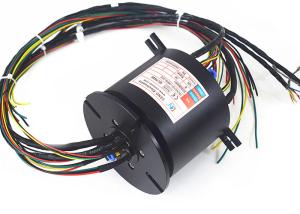

1.0MPa Pneumatic Rotary Union Integrated Slip Ring With 1 Gas Channel

1.0MPa Pneumatic Rotary Union With 1 Gas Channel Industry Slip Rings

It’s a integrated slip ring with 1 channel for air, 8 circuits for electrical power signal, and 24 rings for 2A data signals from CENO electrical company, pneumatic electrical rotary union support 2-12 passage way pneumatic/hydraulic, it can combine with signal, power, Ethernet, device net, control net, USB, Canbus on request. It also could be fixed by shaft or optional flange mounting. Passage media types can use air/gas, chemical, tap water, oil, water. Waterproof grade including IP65, IP67, IP68 etc. Typical application including automatic equipment, machinery manufacturing, food processing etc. CENO would provide more solutions for difference request from different customers.

Features

• Rotate 360 degree to conduct electricity

• Well performance,long lifespan

• Customized size of product and installation

Applications

• Automation equipment

• Liquid mixtures

• Filling product line

• Petrochemical industry

Optional

• Circuit no. & Currents

• Sealing methods

• IP grade

• Signal type

Specification

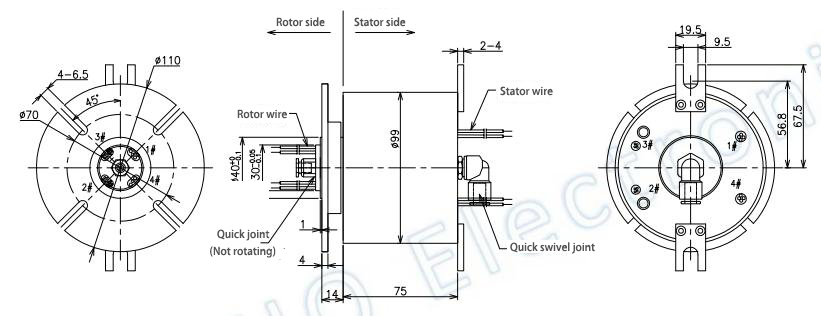

Outline Drawing

Our Service

1. Reply inquiry in 24 hours.

2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.

3. Answer your question detailed.

4. Solved the problem with you during using our products.

5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?

We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?

CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?

A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?

Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?

Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
