Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power

Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power

Inner bore 20mm through hole rotary joint slip ring with gold contacts,0-200 rpm working speed ,used for wind power

Rotary though bore slip rings are suitable for high frequency and high data rate transmission and able to endure in hostile environments or at high speed and more. The center hole in the middle of the slip ring is designed to provide clearance for the rotating shaft and rotary joint to meet the function of 360 °rotation of the equipment. ECN series slip rings are designed with consideration for all user experiences from ease of installation, ease of maintenance and optimal product life. ECN020-53P with gold to gold contacts which is more stable transmission and longer lifespan.It’s also can integrate various of signal such as Ethernet,USB, Canbus, Profibus, Thermocouple etc. Protection grade can be reached IP65,IP66,IP68,through bore size can be customized too ,CENO can design the slip ring with Max 980mm inner hole size.Any special requirements please send email to sales@ceno360.com,we will provide you with the best solutions .

Specification

Features

• With gold contacts
• Long lifetime
• Working speed 0-200 rpm
• Compact design

Applications

Optional

• Through hole size
• Various signal integrate
• Circuits number
• IP protection grade
• Cable length

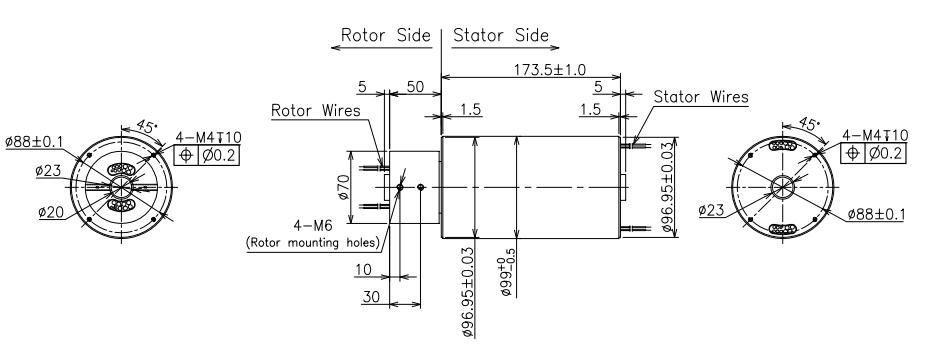

Outline Drawing





Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.


Certification
ISO9001,CE,RoHS,UL,Explosion-proof


CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.


Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.

20mm Inner bore Slip Ring

200rpm Through Hole Slip Ring

IP54 Through Hole Slip Ring

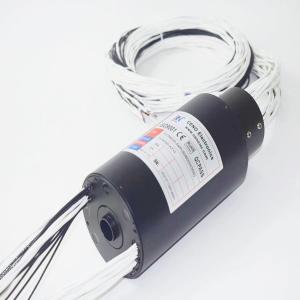

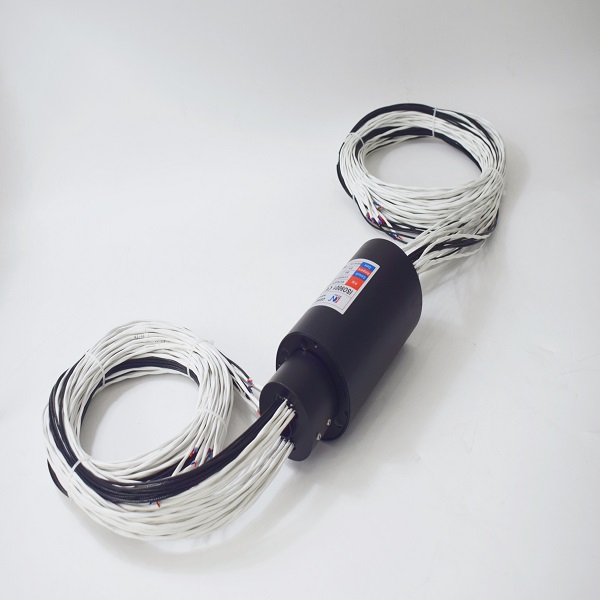

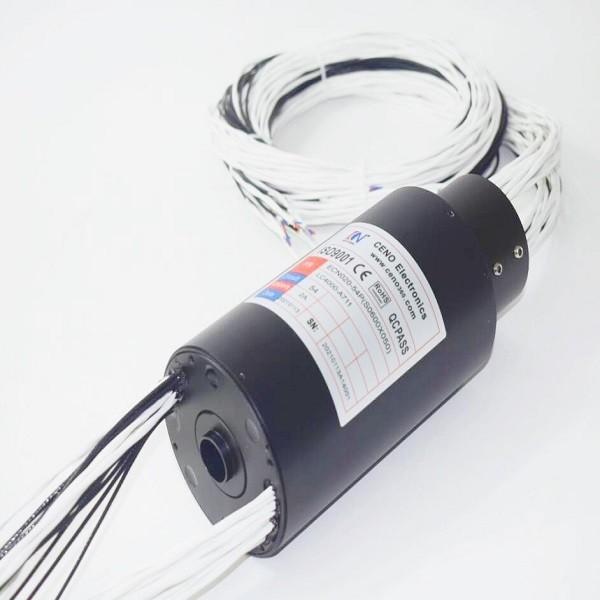

Inner Bore 200rpm 20mm Through Hole Slip Ring For Wind Power Images
