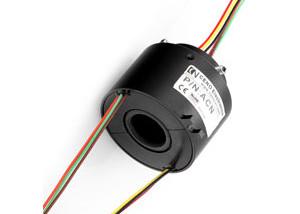

Hollow Shaft Slip Ring Low Electrical Noise Variety Of Sizes In Diameter
Through-Hole Series is designed for applications which require mounting on solid or hollow shafts. Offered in a wide variety of sizes in diameter, the shaft can be utilized as a drive shaft for the rotary portions of a machine or used to hydraulic or pneumatic lines through the center of the unit.CENO company also offers fully integrated solutions with rotating unions and other add-ons.
Feature
- Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- Low friction, long life,Low torque, smooth rotation
- Transmit data and analog signal,compatible with data bus protocol
Typical application
- Radar antenna ,motion simulator
- Construction engineering
- Robot,package equipment
- Lithium battery equipment
Optional
- Through hole size
- Circuit and rating
- Installation way
- IP protection grade
Specification
| ECN012 Specification |
| Circuit | 6,12,18,24 or more |
| Current | 5A,10A/circuit |
| Voltage | 380VAC |
| Electrical noise | ≤10 mΩ max |
| Dielectric strength | ≥1000V@50Hz |
| Operating speed | 300rpm or higher |
| Protection grade | IP54 |
| Operating temperature | -20~+60℃ |
| Through bore size | 12.7mm |
| Lead wire size | 5A- 22AWG 10A- 17AWG |

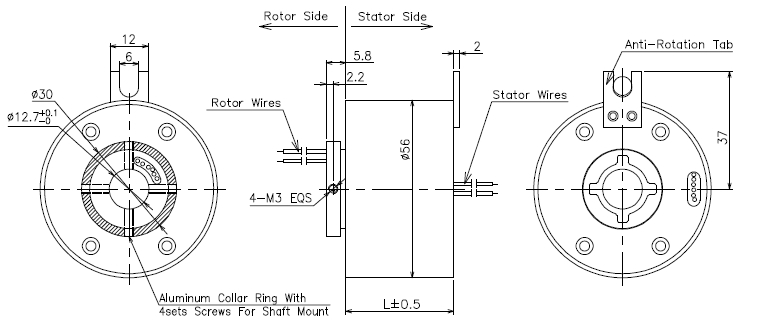

Outline drawing
Length
| L (mm) |
| | 6 circuits | 12 circuits | 18circuits | n circuits |
| 5A | 34 | 47.8 | 61.6 | 21+n*1.5+(n-1)*0.8 |
| 10A | 37 | 53.8 | 70.6 | 21+n*2+(n-1)*0.8 |
