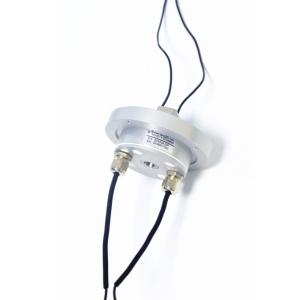

IP 68 Waterproof Slip Ring Anti-Corrosion For Marine Drilling Platform Applications
Waterproof slip ring is able to work at any hard environment ,such as under water, it has high IP protection ,so it can anti- moist,anti-corrosion .as for applications ,it can be widely used in oil well ,drilling platform,marine.
the waterproof slip ring could be divided into multiple protection grade, such as IP65,IP67,IP68 and so on. The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water oil etc.
Features
- High safety ,anti-corrosion
- Low friction, long life,Low torque, smooth rotation
- High IP protection level
Applications
- Beer machine ,filling machine
- Oil well
- Drilling platform
Optional
- Through hole size
- Circuit ¤t rating
- IP protection grade
Specification
| ECN008-02P Specification | Picture |
| Current | 2*5A |  |
| Voltage | 380VAC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | 500MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | Precious metals |
| Operating temperature | -20~+60℃ |
| Through bore size | 8mm |
| IP protection grade | IP68 |

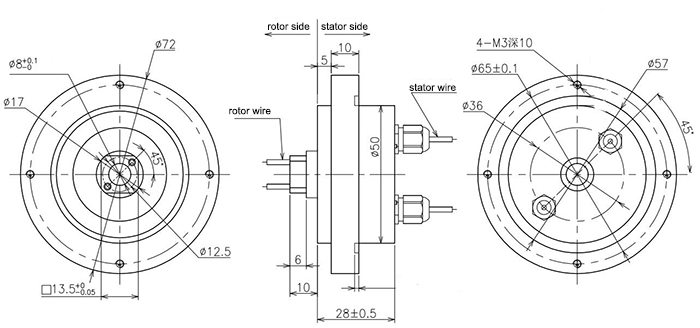

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
