IP54 Middle Size Through Hole Electrical Slip Ring With Low Friction Long Life
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while
transferring power or data from a stationary to a rotating structure .
CENO's hollow shaft slip ring hole size from 3mm to 5000mm are optional.Standard through hole are 12.7mm,
25.4mm, 38.1mm, 50mm, 60mm, 70mm, 80mm, 100mm which we named as ECN012, ECN025, ECN038, ECN050 .....and all other size are capable to be customized.
Features
- Low torque, smooth rotation,low friction,long life
- Continuous transmission under 360° unrestrained rotation
- Support power and signal transmitting
Applications
- Automation equipment
- Military equipment
- Communication equipment , industry process equipment
Optional
- Circuit number
- IP protection grade
- Current rating
- Signal type
Specification
| ECN080-11P Specification | Picture |
| Current | 2*15A,9*5A |  |
| Working Temperature | -45℃~+65℃ |
| Protection Grade | IP54 |
| Working speed | 0~60rpm |
| Contact material | Precious metal |
| Rating Voltage | 380VAC |
| Lead Wire Size | AWG14# AWG22# |
| Through hole size | 80mm |

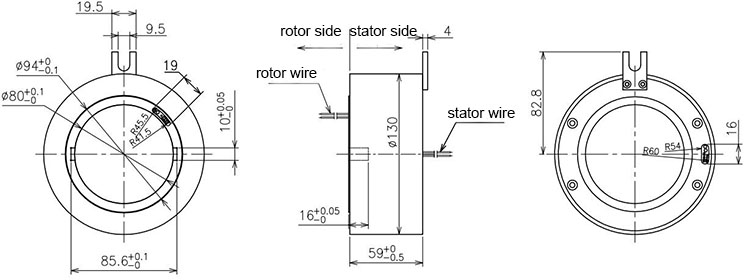

Outline drawing
Application shows
Why CENO
CENO is one technology company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24/7 consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
