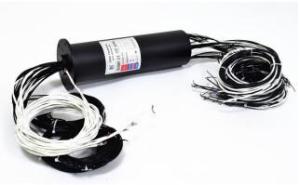

80 Circuit Number industrial conductive slip ring with compact size
CENO company produce the industrial conductive slip ring with compact size,light weight,high reliability,
maintenance free and protection level can reach IP68,that is the important reason why many mud scraper
manufacturers choose us.
For more details, pls see www.ceno360.com
Features
◆ High Protection level
◆ Smooth rotation and stable signal
◆ Multi-channels
◆ Compact size,light weight
Applications
◆ Lithium battery equipment
◆ Motion simulator
Optional
◆ Circuit number
◆ IP protection
◆ Signal type
◆ Current rating
Specification
| Model : ECN000-80P Parameter |
| Current | 80*2A | Protection Grade | IP54 |
| Working Speed | 0~200rpm | Rating Voltage | 240VAC |
| Insulation Resistance | 300MΩ@100VDC | Dielectric Strength | ≥1000V@50Hz |
| Resistance fluctuation | 70MΩ | Contact Material | Precious metal |
| Lead Wire Size | power wire(0.35mm² ), power shielded wire(0.35mm² ) | Working Humidity | 60%RH |

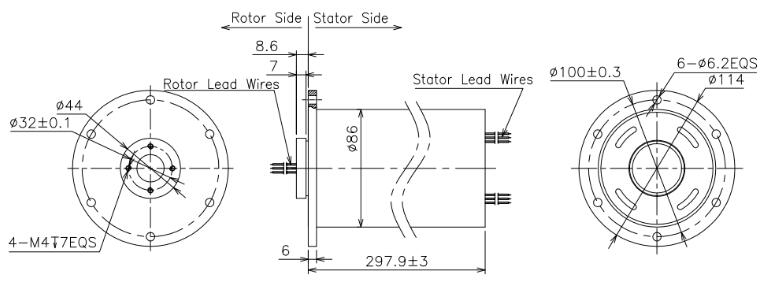

Product Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
