155 Diameter Large Aperture Slip Ring With Long Lifespan Feature
CENO company can custom to produce large aperture slip ring with 1-160 circuits,adopt the latest structure and creative design,and there is a special large customized bearing way to ensure the stability of the slip ring in operation and the long lifespan.
we can custom to make various slip ring as requested !
Features
- High protection grade
- Could be used outdoor
- Long lifespan, maintenance-free
- Various type of signal could be integrated
Application
- Circuit number
- Sewage treatment
- Material delivery equipment
Option
- Circuit number
- Current size
- Protection grade
- Signal type
Specification
| Parameter |
| Circuit | 4*K type thermocouple signal | Protection Grade | IP54 |
| Voltage | 380VAC | Temperature | -20℃~+60℃ |
| Insulation Resistance | ≥100MΩ@300VDC | Humidity | ≤60%RH |
| Dielectric Strength | ≥300VAC@50Hz | Rotating speed | 0~100rpm |
| Resistance fluctuation | ≤70mΩ(50rpm) | Contact Material | Aluminum alloy sandblasting oxidation black |
| Diameter | Ø155 | Wire spec | K type thermocouple |

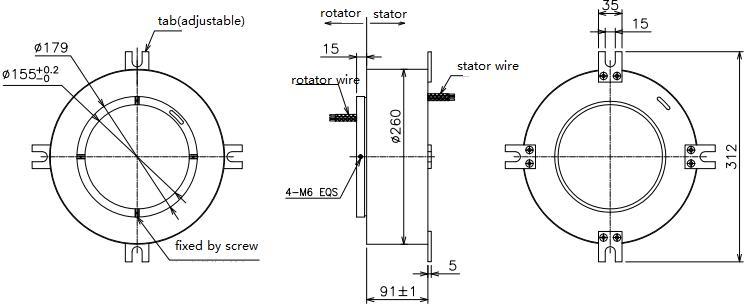

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
