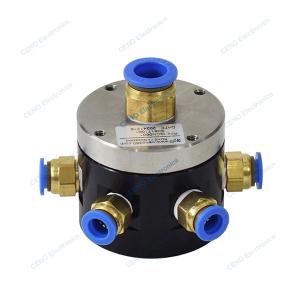

6 channels air gas pneumatic rotary union slip ring with pressure -100KPa ~ 0.8MPa
QCN0601 is CENO new customized rotary union with 6 channels for gas and the rotating speed is up to 100RPM. CENO have designed and manufactured hundreds type Pneumatic or hydraulic rotary union in past twenty years, most parameters can be customized as special application, such as channels, pressure, working speed and out structure etc. Technical features is that designed to transport pneumatic and hydraulic in rotating system to ensure continuous flowing of media during ration, and the sealing technology is used to prevent leakage. It’s suitable for equipment requiring multi-functional transmission, such as the robots, medical equipment, high-end manufacturing equipment etc. For more information please contact us.
Features
- 6 Channels for Air Gas Pneumatic and optional
- High protection and sealing technology to prevent leakage
- Can be integrated power signal
Applications
- Automatic machine
- Hydraulic systems
- Cooling systems
- Rotary Joints
- Filling equipment
Optional
- Sealing material & method
- Media
- Contact / Housing Materials
- Protection grade
- Working speed
Specification
| QCN0601 | Specification |
| Channel | 6 channels * Gas |
| Interface size | Ø4mm tube (G1/8”) |
| Pressure | -100KPa ~ 0.8MPa |
| Working speed | 0~100RPM |
| Housing material | Aluminum alloy |
| Rotation Torque | ≤ 0.6N*m |

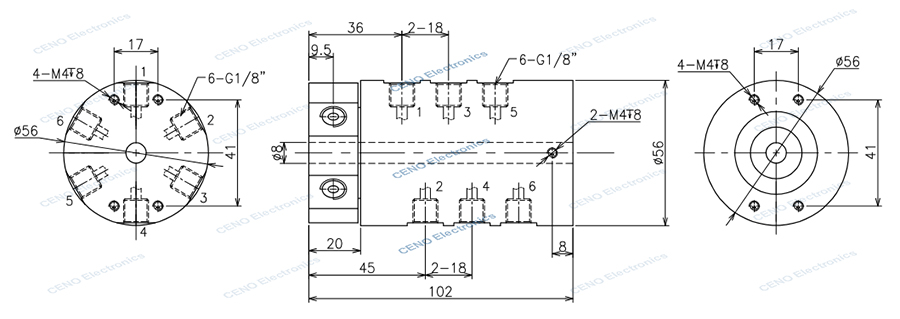

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
