IP65 Waterproof Slip Ring With 300rpm ＆ High Cost Performance For Industry

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN000-04P4-07P2-IP65

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : ４circuits*２５A; ７circuits * 10A

Rating Voltage : 0~400VAC/VDC

Dielectric strength : ≥1500VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~300rpm

Contact material : Precious Metal

Housing material : Aluminum alloy

Working temperature : -20°C~+60°C

Working humidity : 60%

IP protection grade : IP65

Lead wire length : Rotor : 1000mm Stator : 1000mm

External Diameter : Ø86mm

Contact Now

IP65 Water proof slip ring with 300rpm ＆ high cost performance for industry

ECN000-04P4-07P2-IP65 is CENO Water proof slip ring with IP65 and can be designed to IP68 for specific application, It’s suit for harsh and high humidity environment, such as the Marine scientific research, seabed exploration, offshore cable winches. We can provide and customize kinds of function slip rings by integrate electric power, RF, Fiber optic, Pneumatic/Hydraulic, signals as Ethernet, Encoder, Profi-net or HDMI etc, detail as special requirements. More information please contact us.

Features

  • High voltage & IP65 IP67 & IP68
  • Stable transmitting, no string code, low loss comply with EMC
  • Can be integrated various data
  • Install easy & Free maintenance

Applications

  • Marine scientific research
  • Seabed exploration
  • Offshore cable winches
  • Drilling equipment
  • Medical equipment

Optional

  • Circuit, Voltage, Current
  • Signals and data
  • Contact / Housing Materials
  • IP Grade
  • Working speed

Specification

ECN000-04P4-07P2-IP65

 Specification
Current & Circuits

4 circuits * 25A (400VAC)

7 circuits * 10A (400VAC)
Rating Voltage 0-400VAC/VDC
Dielectric strength ≥1500VAC@50Hz
Isolation resistance ≥500MΩ@500VDC
Contact resistance 30mΩ (50rpm)
Contact material Precious Metal
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP65
Operating speed 0~300rpm
Lead wire length Rotor:1000mm; Stator:1000mm
Rotation Way Flange installation

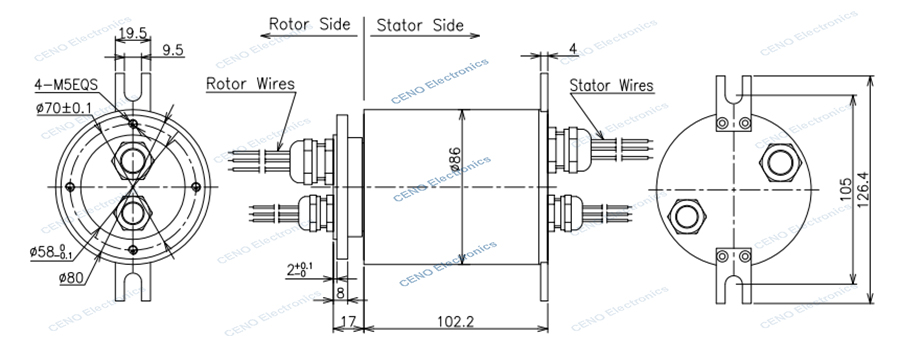

Outline Drawing

IP65 Waterproof Slip Ring With 300rpm ＆ High Cost Performance For Industry

Why Choose Us:

The Experts in Ethernet Signal Slip Rings and Low Temperature Slip Rings


For almost 20 years, CENO Electronics has been the go-to company for the development and manufacturing of slip rings. With over 5000 customized products available, we take pride in offering a wide range of slip ring solutions, including electric slip rings, signal slip rings, functional slip rings, pneumatic & hydraulic rotary joints, fiber optic rotary joints, and RF rotary joints.


One specialty that sets us apart is our expertise in Ethernet signal slip rings and low temperature slip rings. Our Ethernet signal slip rings can transfer high speed data signals without interference, while our low temperature slip rings are designed to operate in temperatures as low as -60˚C. These important features make our slip rings reliable solutions for applications in military, aerospace, and other industries.


At CENO Electronics, we value our customers and strive to provide them with the best products and services possible. Our commitment to quality, innovation, and customization has earned us the trust and loyalty of our clients. Therefore, if you are looking for a reliable slip ring supplier with extensive experience in Ethernet signal slip rings and low temperature slip rings, look no further than CENO Electronics.
